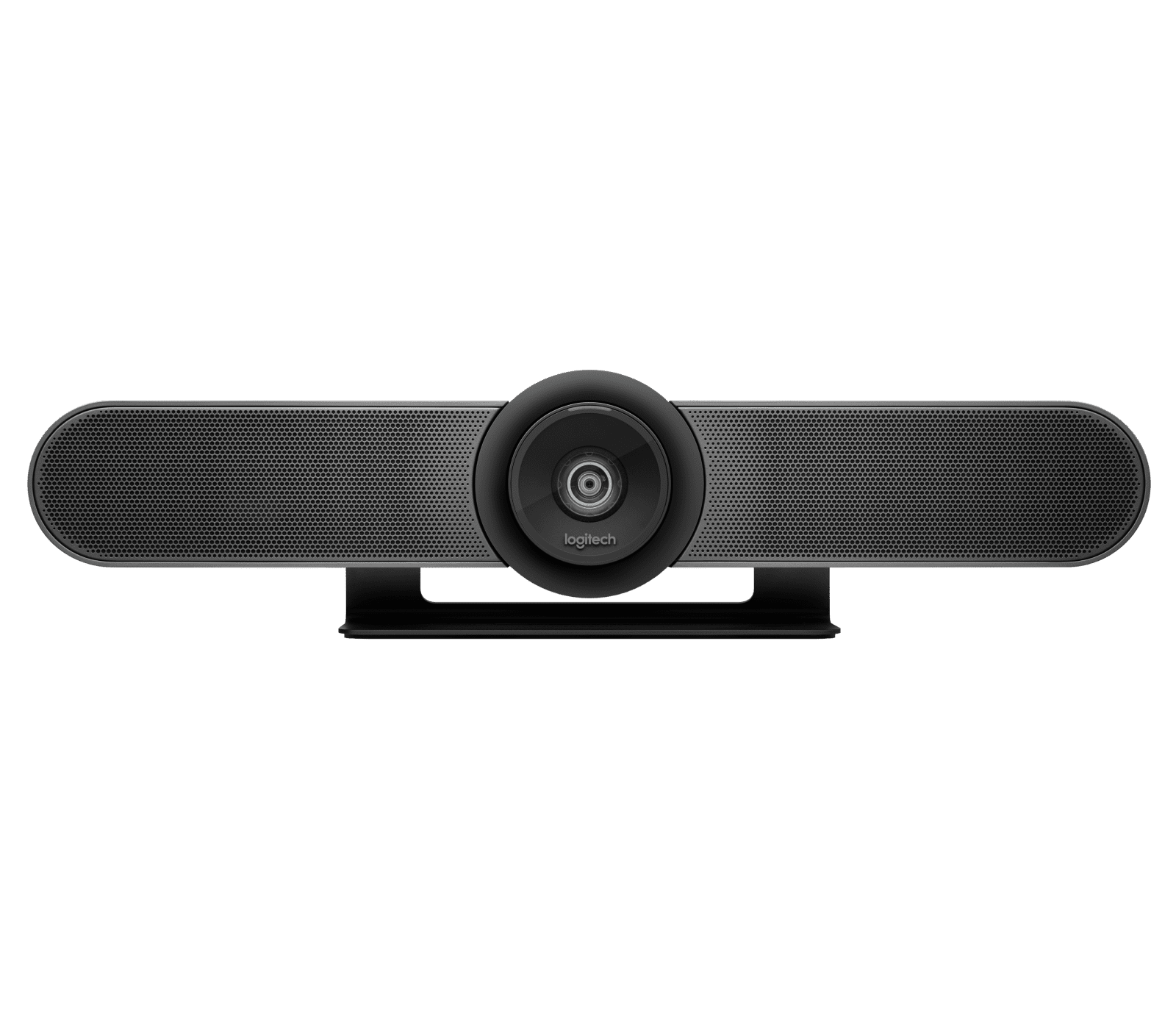

Logitech Meet Up HD Video and Audio Conferencing System

Logitech Meet Up HD Video and Audio Conferencing System

Features:

Brand :Logitech
Model Number :960-001101
Video Capture Resolution :1080p
Video Capture Format HDMI
Screen Size: 3 Inches
Image Capture Speed :30 fps
Logitech’s premier conference cam specifically designed for business grade video meetings in huddle rooms and small conference rooms
Super wide 120 degree field of view enables everyone in the room to be seen, even people sitting close to the camera or at the edges of the room; Sensitivity: 27 db
Built in audio system features 3 microphones and a custom tuned speaker specifically optimized for ultra clear conversations in huddle rooms
Supports the highest HD video quality for your network bandwidth and apps now and in the future with multiple video resolutions, including ultra 4k, 1080p and 720p
Doubles as a speakerphone with an easy wireless connection to Bluetooth mobile devices; Microphone frequency response: 90hz to 16khz for full voice reproduction and high intelligibility without noise.

Items and accessories included in the Go To Room onboarding kit:
Logitech Meetup – Audio and webcam device to connect to VoIP audio and broadcast the room to other attendees.
Logitech remote control – Device to control camera functions (pan, tilt, zoom) during meetings.
Logitech Tap – Mini display to start and join meetings and manage in-session features.
9′ power cable and adapters
32′ USB cable to connect to the Intel NUC
6′ HDMI cable
Wall mounting screws (optional)
Intel NUC – Mini computer to run or join the Go To Meeting session.
Power cable
Other accessories included in the kit:
16′ USB 2.0 cable
Meet Up power adapter
Meet Up wall mounting bracket and hardware
Additional requirements:
Display screen (monitor or television) capable of 1080×1920 resolution or better
Ethernet cable

(a) Logitech Meet Up
If desired, install the wall mount using the included kit and screws.
Use the included USB cable to connect the Meet Up to the Intel NUC.
Use the power cable to connect the Meet Up to an outlet.
(b) Logitech Tap
Use the included USB cable to connect the Tap to the Intel NUC.
Use the included power cable to connect the Tap to an outlet.
(c) Intel NUC
Use the included HDMI cable to connect the Intel NUC to your display.
Use the included power cable to connect the Intel NUC to a power outlet.
Use an ethernet cable to connect the Intel NUC to a network ethernet port.
Click the Power button to turn on the system.
(d) Go To Room management
You’re ready to start and join meetings! Continue the setup by customizing the system’s settings and integrating your Office 365, Microsoft Exchange, or Google calendar
